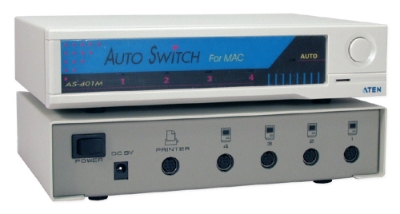

AS401M Mac/Apple Serial Autoswitch
|
Up to Four (4) Computers Share One (1) Serial
Printer/Modem
Introduction/Descriptions:
|
This autoswitch provides the easiest way to share a non-AppleTalk printer or
modem among |
|
four (4) Macintosh users bypassing cable swapping troubles.
|
Features:
|
• |
Four (4) computers share one (1) serial printer/modem |
|
• |
Auto with manual mode locking feature |
|
• |
Plug & play, no software required |
|
• |
First-come, first-serve basis |
|
• |
Supports IEEE1284 nibble mode |
|
• |
LEDs for status indicate |
|
• |
Status LEDs indicate channel-in-use |
|
• |
Includes a 9vDC Power Adapter & One Year warranty
|
Specification:
|
• |
Power Consumption |
DC9v 100mA |
|
• |
Cable Distance |
3m (10ft) |
|
• |
Connector |
Mini8F |
|
• |
LEDs Indicator(s) |
(4) Input Status, |
(1) Auto Status |
|
• |
Input Port Select |
Automatic/Manual |
|
• |
Enclosure |
Plastic & Metal Chassis |
|
• |
Operation Temperature |
+5º - +40º |
|
• |
Stock Temperature |
-20º - +60º |
|
• |
Humidity |
0º - 80º |
|
• |
Weight |
1150 gm |
|
• |
Dimensions (LxWxH) |
224 x 152 x 52 mm |
Recommended Cables:
|
I/O |
Mini8M/M, to printer or Modem |
CC522 |
|
|
Mini8M/DB25M, to printer |
CC521 |
|
|
Mini8M/DB25M, to Modem |
CC506 |
|
|
Mini8M/F, Extension Cable |
CC525 |
Includes:
|
• |
(1) Autoswitch |
|
• |
(1) 9vDC 300mA Power Adapter |
|
• |
User's Manual & Warranty Card | | |
 |
