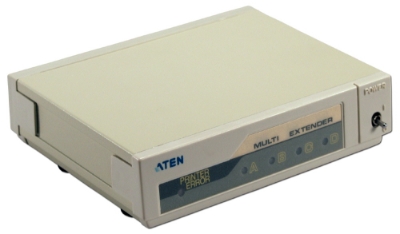

CA947-4 REMOTE PARALLEL
PRINTER AUTOLINK SWITCH
|
- Up to Four (4)Computers Share One (1)Parallel Printer
- NOTE: One (1)CA945 Transmitter is Required for Each Computer
Port
-
Features:
- High efficiency, CA947-4 allows four (4)computers or terminals to share one
(1)parallel printer, which increases the printer operation
efficiency.
- High speed of 27.5KB/sec (max), transmission rate for printing files, acts
as an interface between the computers and printer, and it is especially suitable
for a laser printer
which requires 6 to 15KB/sec.
- This device can communicate up to 4,000ft away, which overcomes the commonly
found short range communication problem in the parallel communication
peripherals.
- This is the best solution for office automation and inter-departmental
resource sharing.
- Selectable time-out from 8 to 24 sec
- High compatibility to utilize along with all the on-the-shelf packages and
programs.
- Autolink switch has four (4)RJ12F built-in receiver ports which converts
signal back to parallel, and is joined to the printer using parallel printer
cable.
- Compact size and light weight
- Auto form feed selection
- Specification:
|
|
9vDC 650mA Adapter |
|
|
8-10-16-24 sec |
|
|
Enable/Disable |
|
|
(1)-DB25F |
|
|
(4)-RJ12F |
|
|
Automatic Switch |
|
|
4position, facilitates Time-Out and Form Feed |
|
|
(4)-Ready Status (1)-Printer Error Status |
|
|
0°C - 80°C |
|
|
0% - 80% |
|
|
270 gm |
|
|
13.70 x 10.30 x 3.40 cm |
Includes:
- (1) Remote Parallel Printer Autolink Switch
- 9vDC 600mA Power Adapter
- User's Manual & Warranty Card
| |
 |
