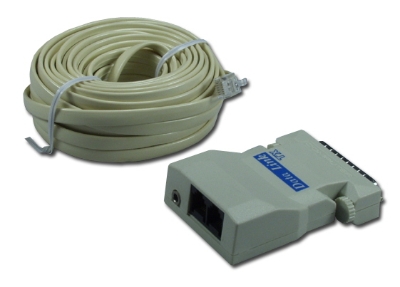

CA953T ParaNeT TRANSMITTER EXPANSION KIT

Up to 16 Computers to 1 Parallel Printer

Features:

• Connect as many as 16 PCs to a parallel printer up to 1,500ft
• No external power supply required, uses power from the printer port
• Data transfer rate of 10KB/sec, built-in termination
• Operates on first-come, first-serve basis
• Connects with easy to route RJ12 straight through cord
• Thumbscrews for easy attachment, no tools required
• DIPswitch on receiver adjusts time-out 10 or 60 sec
• Includes 25ft RJ12M/M cord

Specification:

Power Supply	Non-Power
Connectors	DB25 & RJ12 Phone Jack
Interface	DB25 & Centronics
Cable Type	6wire Phone Line
Max Distance	450m (1,500 ft)
Data Transfer Speed	8.5 KB/sec (max)
Weight	45 gm
Dimensions (LxWxH)	76 x 54 x 20 mm



Includes:

• (1) ParaNet Transmitter Expansion Kit
• User’s Manual & Warranty Card
• 25ft RJ12 Phone Cord
