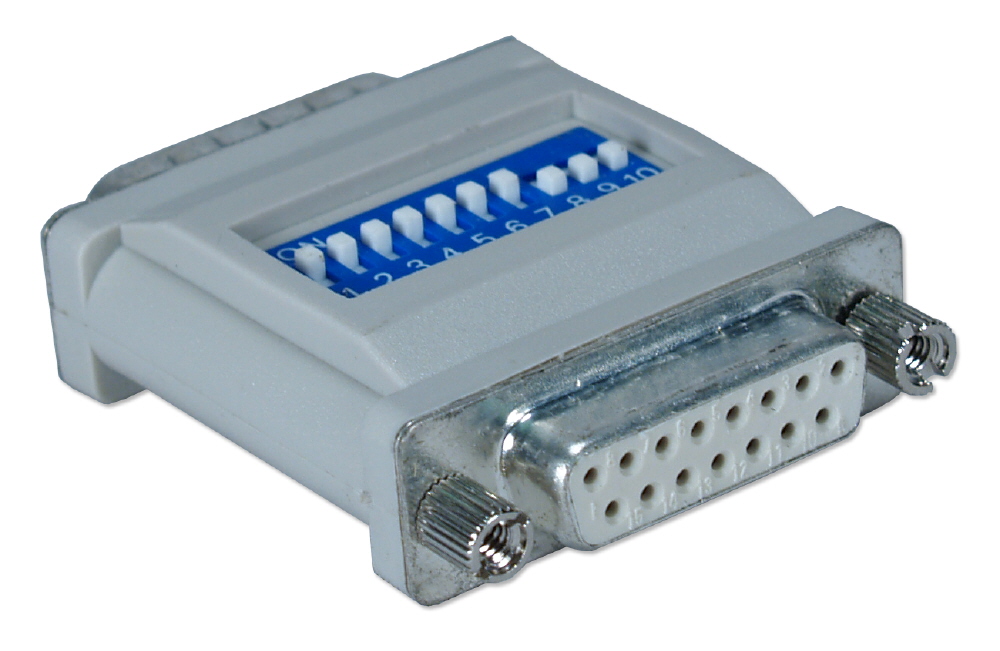

CC2270A Macintosh Monitor
Adaptor |
DB15P Male to DB15P Female
Molded Type, w/ 10 Position DIP
Switches
Select the signal between Macintosh
Computer & NEC
Monitor
|
DIP Switch Settings for
CC2270A |
| Monitor |
Resolution |
Mode 1 |
Mode 2 |
Mode 3 |
Mode 4 |
Mode 5 |
Mode 6 |
| 12" RGB |
612x384 |
1345 |
13456 |
1347 |
1346 |
13467 |
134 |
| 13" RGB |
640x480 66Hz |
145 |
1456 |
147 |
146 |
1467 |
14 |
| Portrait |
640x870 |
2345 |
23456 |
2347 |
2346 |
23457 |
234 |
| VGA/SVGA |
640x480/800x600 60Hz |
235 |
2356 |
237 |
236 |
2367 |
23 |
| 15" TILT |
245 |
2456 |
247 |
246 |
2467 |
24 |
| 16" Color |
832x624 |
135 |
1356 |
137 |
136 |
1367 |
13 |
| 18" Color |
1024x768 |
125 |
1256 |
127 |
126 |
1267 |
12 |
| 21" Color |
1152x870 |
12345 |
123456 |
12347 |
12346 |
123467 |
1234 |
| 2 Page Mono |
1152x870 |
345 |
3456 |
347 |
346 |
3467 |
34 |
| NTSC |
1245 |
12456 |
1247 |
1246 |
12467 |
124 |
| NTSC/PAL |
1235 |
12356 |
1237 |
1236 |
12367 |
123 |
| Hi-Res(12-14") |
145 |
1458 |
147 |
146 |
1467 |
14 |
| Multi Scan 14" |
14589 |
145689 |
14789 |
14689 |
146789 |
1489 |
| Multi Scan 16" |
1458 |
14568 |
1478 |
1468 |
14678 |
148 |
| Multi Scan 21" |
1458 |
14569 |
1479 |
1469 |
14679 |
149 |
| Mode 1 is Composite Sync (1) |
Sync signal (DB-16M pin 3) connected to HDD-15P(f) Pin
13 |
| Mode 1 is Composite Sync (2) |
DB-15M Pin 3&15 to HDD-15F Pin 13 |
| Mode 3 is Sync on V |
DB-15M Pin 12 to HDD-15F Pin 14 |
| Mode 3 is Sync on H |
DB-15M Pin 15 to HDD-15F Pin 13 |
| Mode 5 is Separate Sync |
DB-15M Pin 12 to HDD-15F Pin 14
DB-15M Pin 15 to HDD-15F Pin
13 |
| Mode 6 is Sync on Green |
Sync on Green | | |
 |
