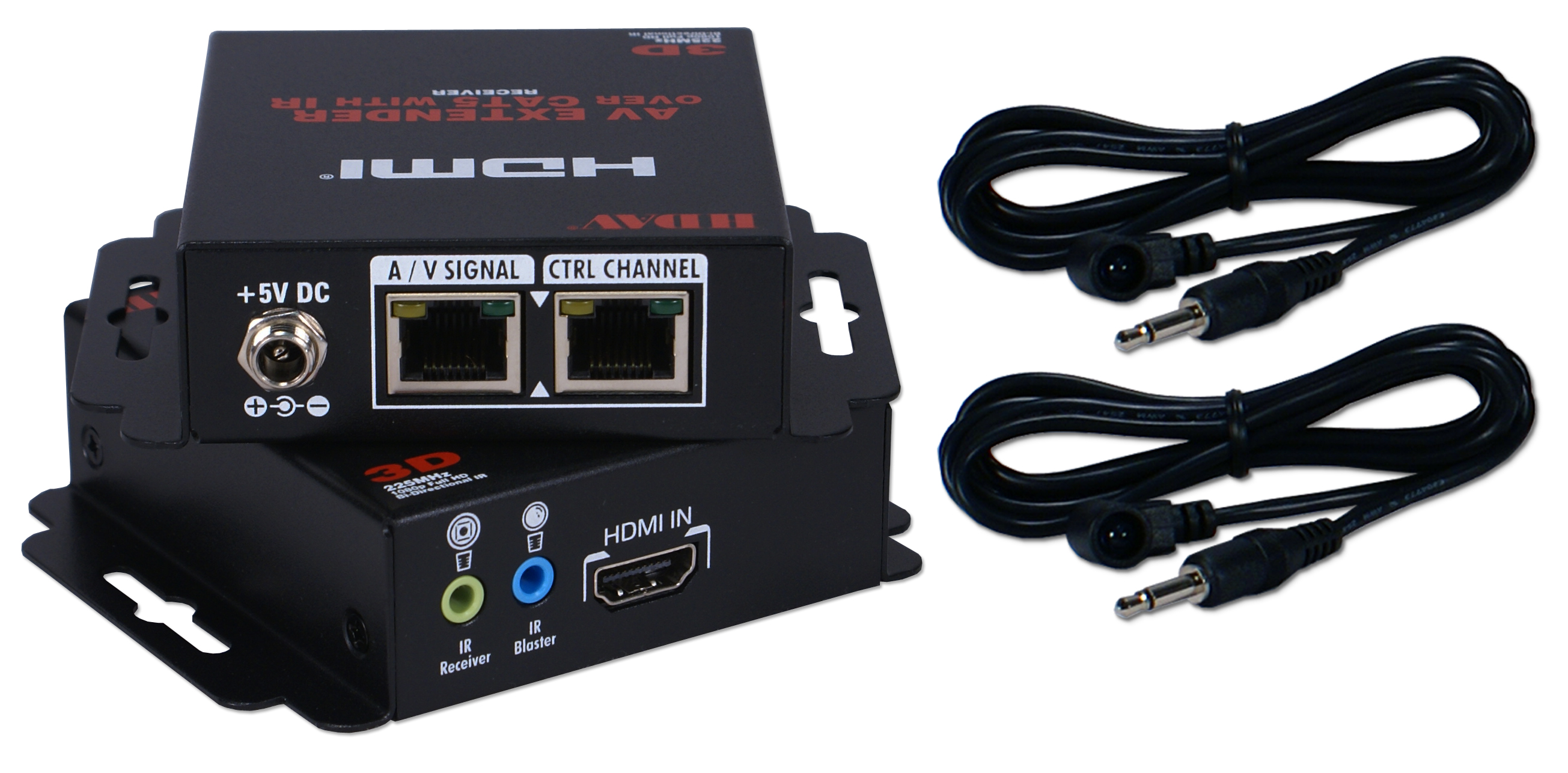

Connects any PS3, Blu-ray, Xbox, DVD player or satellite & cable TV set-top receivers to HDTV, flat panel, or projector with HDMI. Supports 1080p/60Hz for up to 40-Meter and 1080i/720p/60Hz for up to 60-Meter using CAT5e/6/RJ45 cable. Embedded bi-directional infra-red (IR) control path allows user to control the source device & display remotely. FullHD HDMI with HDCP, 3D, Deep Color, 24/48/50/60/120Hz, DTS-HD & Dolby TrueHD multi-channel digital audio, and independent DDC channel. It has 8-level skew compensation, EDID pass-thru capability, full IR bandwidth (20KHz~60KHz), single-end power on transmitter or receiver, built-in mounting for secured connection, and locking power connector. Includes HDMI transmitter & receiver, IR transmitter & receiver, mounting screws, and universal locking power adaptor. Required Cables: Solid CAT5e/6 Cables. (Local Connectors: HDMI/RJ45 Female to Remote Connectors: HDMI/RJ45 Female)
| HD-C5IRB | 0 37229 00798 5 |
| Signal Type | 720p, 1080i, 1080p @ 60Hz |
| Video & IR Bandwidth | 225MHZ (6.75Gbps) / 20-60KHz |
| Connectors | HDMI 19pin / RJ45 / 3.5mm IR |
| HDCP/DDC/CEC Compatability | Yes |
| Deep Color Support | Up to 36bit |
TMDS Input Voltage
DDC Input Voltage | 1.2v (peak-to-peak)
5v (peak-to-peak) |
| CAT5e Cable Skew Equalizer | 8 levels |
| Power Supply | 5v 2A DC, TX or RX |
| Operating Temparature | 32 to 131 F |
| Standard | HDMI 3D, HDCP 1.1, RoHS |
| Warranty | One Year |
