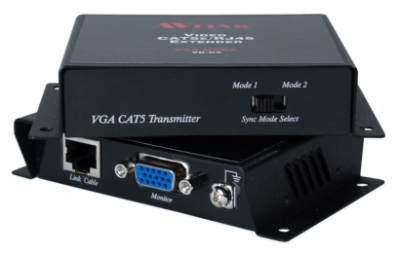

Extends video signal up to 100-Meter (330ft) using the CAT5e/6/RJ45 cable. This extender kit provides equalization to optimize picture quality. Supports maximum resolution of 1600x1200/60Hz for up to 50-Meter & 1024x768/60Hz for up to 100-Meter. It can be mounted on the wall and provides cable grounding. Includes transmitter & receiver, mounting screws, and one 1ft HD15 M/M cable. Required Cables: Solid CAT5e/6 Cables. (Local Connectors: HD15/RJ45 Female; Remote Connectors: RJ45/HD15 Female)
|
VA-E
|
0 37229 00738 1
|
|
|
|
|
Video Signal Type
|
VGA/SVGA, XGA/UXGA
|
|
Video Bandwidth / Connectors |
Up to 150MHz / HD15 & RJ45
|
|
Insertion Loss
|
Less than 3db
|
|
Impedance
|
RGB - 75Ohms Unbalanced
Cat5e - 100Ohms Balanced
|
|
Video Signal Return Loss
|
-15db Max from DC to 60MHz
|
|
CAT5e Cable Equalizer
|
Adjustable EQ Controls
|
|
Audio Frequency
|
10Hz to 25KHz / -3dB
|
|
Audio Impedance & Connectors |
10k Ohms / 3.5mm
|
|
Operating Temperature
|
32 to 120 degrees F
|
|
|
|
|
Certification
|
FCC, UL, CE, RoHS Compliant
|
|
Warranty
|
One Year
|
